Description of Diamond Wire Saw Machine Type: Stone cutting machine Main motor: 70kw
Flywheel's diameter: 800mm
Guide Pulley's diameter: 2*380mm
Wire speed: 0-40 m/s
Walking motor: 1.5kw
Waling speed: 0-30 m/h
Adjustment distance: 450mm
Rotation angle: 360°
Max length of wire saw: 60m
Net weight: 2600kg
PRODUCT SPECIFICATIONS
型号
Model
55KW-6P
55KW-8P
永磁60KW
永磁70KW
75KW-6P
系统总功率(KW)
Gross power of machine
59KW
59KW
64KW
74KW
79KW
主电机功率(KW)
Power of main motor
55KW
55KW
60KW
70KW
75KW
串珠绳线速度（M/S）
Wire saw speed
0-40
0-33
0-40
0-40
0-40
可带绳长（M）
Length of wire
20-120
20-120
20-120
20-150
20-150
进给电机功率（KW）
feeding power
1.5KW
1.5KW
1.5KW
1.5KW
1.5KW
横移距离（mm）
Sideways range
560
560
560
560
560
旋转角度
Rotation angle
360°
360°
360°
360°
360°
设备行走速度（m/h）
Walking speed of machine
0-112
0-112
0-112
0-112
0-112
导轨长度
Length of rail（m）
2m*3+1m
2m*3+1m
2m*3+1m
2m*3+1m
2m*3+1m
使用许可温度（℃）
Working temperature range
-15℃～
+40℃
-15℃～
+40℃
-15℃～
+40℃
-15℃～
+40℃
-15℃～
+40℃
电源（AC V/HZ）
Power
AC330V~420V， 50/60Hz
整机重量（T）
Weight
2.8T
2.8T
2.6T
2.6T
3.2T
FEATURES AT A GLANCE
1. The main motor is powered by inverter to obtain the suitable wire speed according to the type of granite or marble. It is applicable for quarrying all kinds of granite and marble
2. Apply vector inverter with invariable torque. Feed speed can be regulated automatically and smoothly as cutting force changes.
3.The control cabinet is placed separated within a side door. It is easy to do maintenance work.
4.Double dust-proof and waterproof structure is used to protect the main motor. The guide poles and screw rod are isolated with dust and water by the flexible lags. Greatly extend the life of the machines.
5.Easily regulate the position and angle of driving flywheel by motors.
6.Display the real time of the parameters, such as the main motor’s current, flywheel’s speed.
7.The machine can be operated manually or automatically.

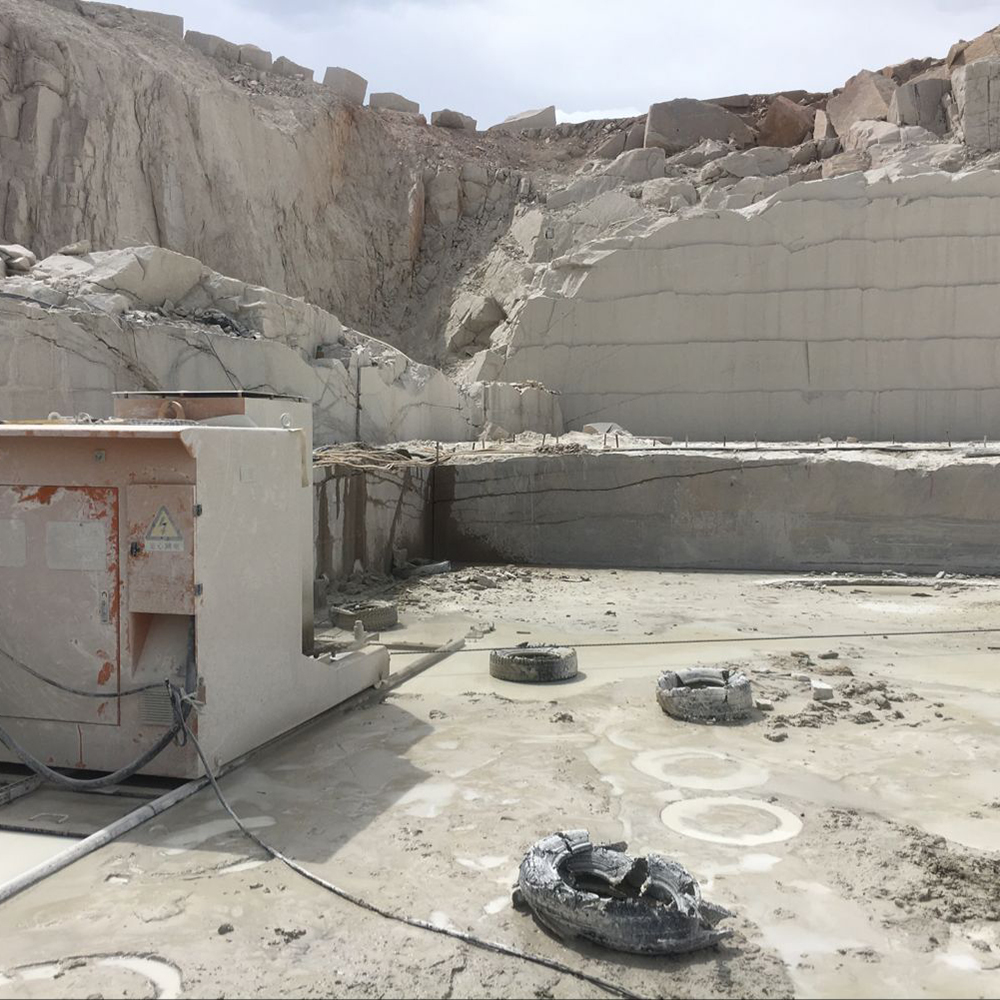

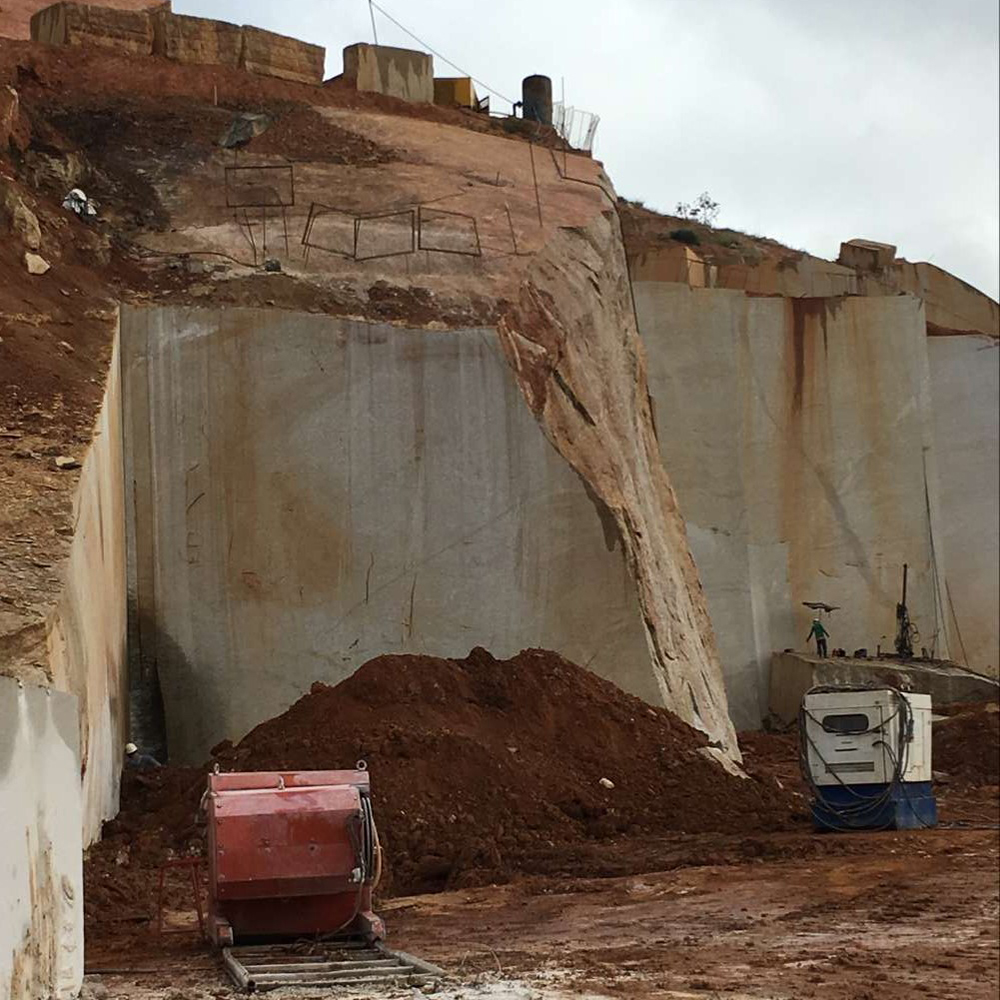

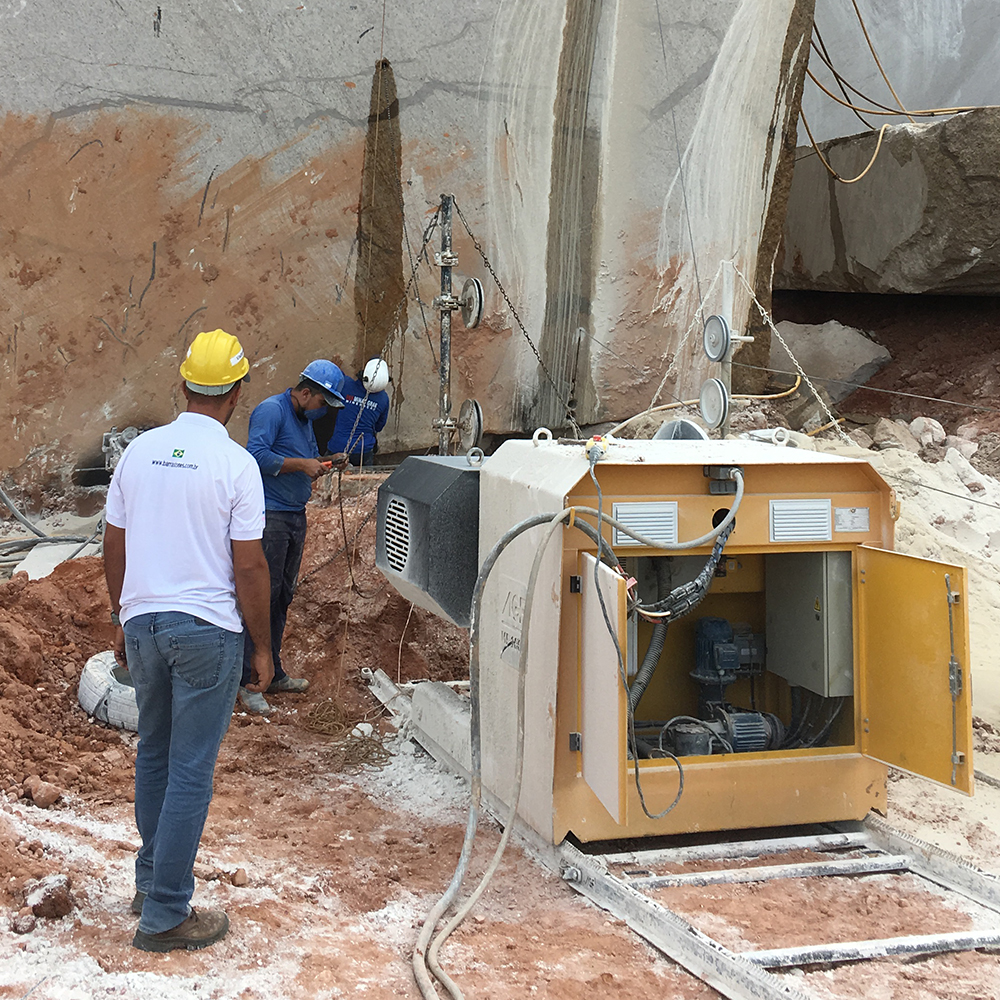

Product Application
In the mines of Brazil
In the mines of Egypt
In the mines of Italy
In the mines of Russia
Exhibition
ITALY
BRAZIL
AMERICA
Certifications
