Diamond Wire Saw Machine

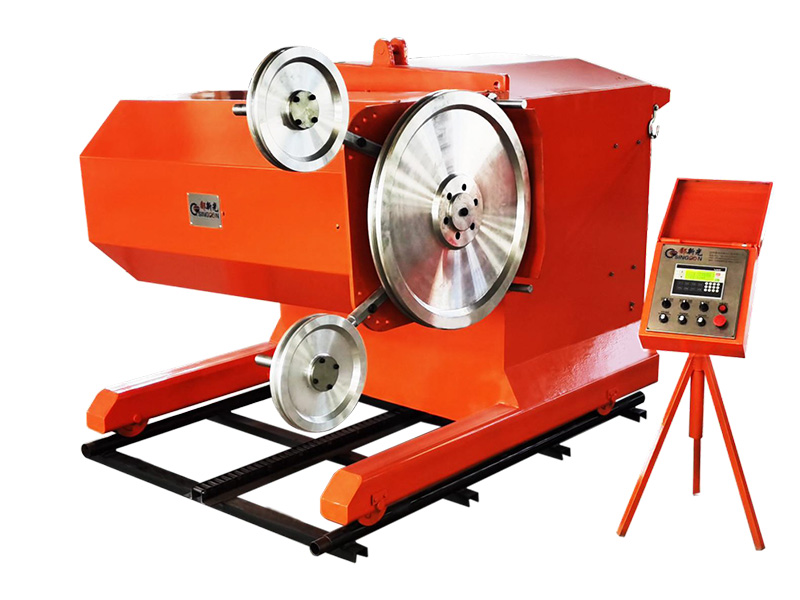

What Is The Diamond Wire Saw Machine

Singoon wire saw machine is a new generation of stone mining equipment developed by Jiangxi Xinguang Diamond Tools Co., Ltd., using inverter control, with manual, automatic, fast feed, work feed, manual speed control, automatic speed control, automatic fault alarm and other functions, simple and reliable structure, high degree of automation, easy operation and maintenance, can be used to mine various types of granite and marble, is an essential tool for stone mines.


Technical Parameter

Model 55KW-6P 55KW-8P 60KW 70KW 75KW-6P
Gross power of machine 59KW 59KW 64KW 74KW 79KW
Power of main motor 55KW 55KW 60KW 70KW 75KW
Wire saw speed 0-40 0-33 0-40 0-40 0-40
Lengch of wire 20-120 20-120 20-120 20-150 20-150
Feeding power 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW
Sideways range 560 560 560 560 560
Rotation angle 360° 360° 360° 360° 360°
Walking speed of machine 0-112 0-112 0-112 0-112 0-112
Length of rail(m) 2m*3+1m 2m*3+1m 2m*3+1m 2m*3+1m 2m*3+1m
Working temperature range -15℃~+40℃ -15℃~+40℃ -15℃~+40℃ -15℃~+40℃ -15℃~+40℃
Power AC 330V~420V, 50/60Hz
Weight 2.8T 2.8T 2.6T 2.6T 3.2T

How To Operate The Diamond Wire Saw Machine

Diamond Wire Saw Machine Work Principle

The working principle of the rope saw machine is to use the main drive flywheel high-speed rotation to drive the diamond bead rope for high-speed linear movement, so as to achieve the purpose of cutting stone.



Advantages Of Diamond Wire Saw Machines

1.All electrical accessories of the equipment (such as contactors, intermediate relays, air switches, etc.) are imported from France Schneider and Japan Omron.

2.The operating desk panel selection switch uses the ABB products imported by Switzerland and strong dustproof. The speed control potentiometer on the console uses Japanese imported multi-ring potentiometers, which has the characteristics of high control system, high stability, low failure rate.

3.The machine does not require the phase of the power supply, and there is no need to identify and exchange the power phase so that the mine workers operate and improve work efficiency.

4.Both movement and rotation angles (360°) of the head are electrically driven and the photoelectric proximity switch is installed, and it works fine in a harsh environment of moisture and dust.

5.Machine head lifting and rotation can be controlled by the work desk, and the staff can remotely operate the machine.

6.Automatic refueling and refueling ports are installed in the main gear and screw active parts of the equipment, which makes the equipment maintenance easier.

7.All the control switches of our wire saw machine are 24V volt human safety voltage, which can effectively protect the safe operation of workers;

8.Our wire saw machine has a derailive alarm design, and the equipment is automatically stopped when the equipment is complete during night and unmanned.

9.The main motor adds a bearing refueling column to improve the motor working efficiency and increase the service life of the motor bearing.

10.The equipment control cabinet has a fully sealed constant temperature control cabinet of our company's invention patent, and the door frame adds a dust-proof seal strip to avoid dust from entering the machine

11.The console control cable is a special cable customized by our company according to the special environment of the mine. This cable has strong tensile resistance, high and low temperature resistance, oil resistance, acid and alkali resistance.

12.The protection levels of all motors are IP55, the button switch and the electric control box are IP65, and the whole machine protection level is IP55.



Name Introduction Size Downloads Update Category Copy Link Download
Xinguang Wire Saw User Manual.pdf 1.32MB 10 2021-12-12 download Copy Link Download

Diamond Wire Saw Machine Safety

1.Machine head lifting and rotation can be controlled by the work desk, and the staff can remotely operate the machine.

2.All the control switches of our wire saw machine are 24V volt human safety voltage, which can effectively protect the safe operation of workers;

3.The operator must wear safety helmet, protective glasses and protective shoes, and the wire saw machine work site must be placed or posted " Dangerous area, No entry " warning signs, etc., to avoid miscellaneous personnel to enter, in order to prevent danger.

4.The operating table shall be placed in the vertical wire saw machine cutting direction and at least 5 meters away from the machine. A safety baffle with a height of 1.2M and a width of 1.5M must be placed in front of the operating table, and the operator shall operate within a safe distance. After confirming that the safety protection device is installed or the protection measures are taken, the wire saw machine can be started. Any protection safety measures shall not be removed during the operation of the machine.

5.When the wire saw is cutting in a vertical plane, it is forbidden for anyone to stand in the same direction as the wire saw, nor to look down on the cutting track, so as to prevent personal injury when the beaded rope breaks.

6.When the wire saw is cutting on a horizontal plane, a safety baffle should be placed on the outside of the exposed beaded rope to prevent personal injury when the beaded rope breaks.



The Application Of Diamond Wire Saw Machine

Singoon Diamond Wire Saw Machine is mainly used for mining and cutting of granite, marble and other stone mines.



Professional Diamond Wire Saw Machine Manufacturer

Jiangxi Xinguang Diamond Tools Co., Ltd. was established in 2002, located in Tianfanjie Town, Poyang County, Jiangxi Province, covering an area of more than 2700 m2. The annual sales reach about 150 million RMB. Our company's main products are a series of granite and marble stone mechanical cutting tools such as diamond wire saw machine, diamond wire saw, diamond segment, diamond saw blade. We are factory and trade integrated diamond tools company.

At present, the annual export volume accounts for about 30% of our company's turnover, and the products are exported to Europe, Central Africa, Asia, South America and other regions. We have a number of imported cold press machine, sintering machine and a series of excellent production equipment. We have high quality, good sales.

Our company on the basis of the "Good Quality, Customer First" business philosophy, with the most perfect all-round service, and constantly improve the product quality. Xinguang is committed to providing customers with the best prices, the best timely delivery, the best reputation, and to establish an honest cooperation, to provide customers with the best products.



Information About Diamond Wire Saw Machine

  • Do you only have wire saw machine, and there are no other tools for stone quarry?

    We not only have wire saw machine, but we also produce diamond wire saw and diamond segment for stone quarry, one-time to solve the stone quarry troubles for customers.
  • Do you have your own brand, do you have your own patents?

    We have independent trademarks and a number of new utility patents, and we have successfully applied for becoming a national high-tech enterprise in 2020.
  • Is the use of Singoon wire saw machine safe?

    All the control switches of our wire saw machine are 24V volt human safety voltage, which can effectively protect the safe operation of workers.
  • Does the wire saw machine require the phase of the power supply?

    Singoon wire saw machine does not require the phase of the power supply, and there is no need to identify and exchange the power phase so that the mine workers operate and improve work efficiency.
  • You are a Trading Company or Manufacturer?

    We are an original reliable machinery manufacturer.
